TITAN LITE
Construction Monitoring Camera
Introducing the Titan Lite, our latest time-lapse camera. Equipped with a Hikvision 1/2 inch CMOS sensor, it's a cost-effective solution for long-term time-lapse projects. Additionally, the Titan Lite doubles as a CCTV security camera, boasting advanced AI features for enhanced surveillance.
4K Video
8MP Photo
1/2 Inch CMOS
Sensor
Horizontal View
112° to 46°
Solar or AC
Powered
AI Safety
Monitoring
4G Enabled
Titan Core
The Titan Core is the central control unit that powers and communicates with the time-lapse camera. Its software has been completely re-engineered for greater intelligence, stability, and power efficiency.
Designed with an integrated heat sink, the Titan Core keeps its processor running cool and stable, even in extreme temperatures up to 50 °C.
Double up as a CCTV Camera

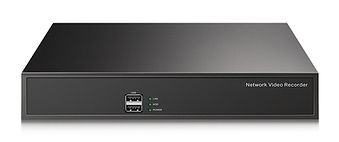

Titan Lite is equipped with a Hikvision CCTV camera with top-notch surveillance capabilities. By adding a Video Recorder (NVR) to your setup, Titan can enhance its functionality, allowing for live video feeds and playback options.
Fault Alert System
The Tbox server will automatically send an alert message to your phone via Telegram, if no image is received from your time-lapse camera. Thus, you can rest assured that your camera functions as it should.
Easy Setup with Tbox App
Use the Tbox App to set up your desired shooting interval, then connect the camera to the Tbox Cloud. It is that simple.
Tbox Photo Viewer
The Titan captures photos in regular intervals & sends them to our data cloud. You can make photo comparisons, download images & render time-lapse videos. Manage your time-lapse project via tboxsystems.com.
Download Image
Project Calendar
Image Comparison Tool
Render Time-lapse
Unlimited Users
ProViewer
The optional ProViewer has more advanced features than the Tbox Photo Viewer. It offers a comprehensive site monitoring and management solution for construction monitoring. Here are its features.
AI People Counting
Weather Data
AI Truck Counting
BIM Software Integration
Hard Hat Detection
Instant & Custom Report
Tbox Cloud & Subscription
Protecting your precious images is essential, especially with long-term time-lapses that span several years. Your images are transmitted through 4G cellular data to our secure data cloud, with 3 layers of backups. Easily access your images at tboxsystems.com.
Titan X
w/ Canon EOS R
Titan Lite
Titan Camera Comparison

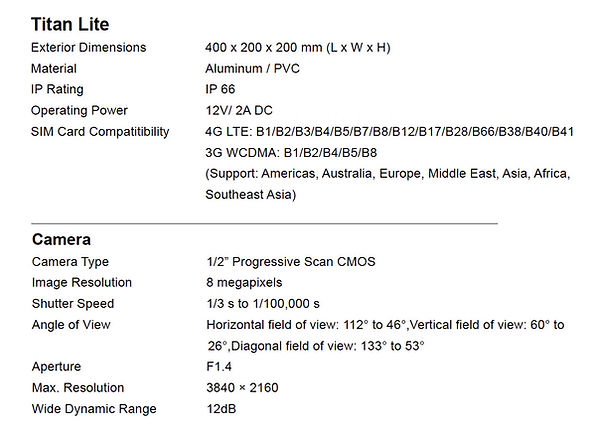

Titan Lite Specifications
Solar Power Kit
Titan Lite can be powered by a solar panel & batteries with 4 to 6 hours of sunlight daily. We recommend using a 100W solar panel to keep it running 24/7.
The Tbox Solar Power Kit includes all necessary cables & accessories to connect a 12V lead-acid battery to your solar panel (both not included). The box is large enough to fit a 50AH lead-acid battery pack. In prolonged bad weather, the battery unit can last 4 to 5 days without charging. DETAILS
