Package includes:

  • Weather-proof Housing
  • Titan X Mini-computer
  • 4G Router
  • Third Party Battery Adapters (LP-E6 & LP-E17)
  • AC to DC Charger
  • Free 6 months subscription to Tbox Server Plan


Not Included

  • Canon Camera
  • Data SIM Card


Battery Adapter Compatible List
Third party battery adapter (LP-E6) - 60D, 70D,80D, 5D, 6D, 7D
Third Party battery adapter (LP-E17)- 200D, 750D, 800D

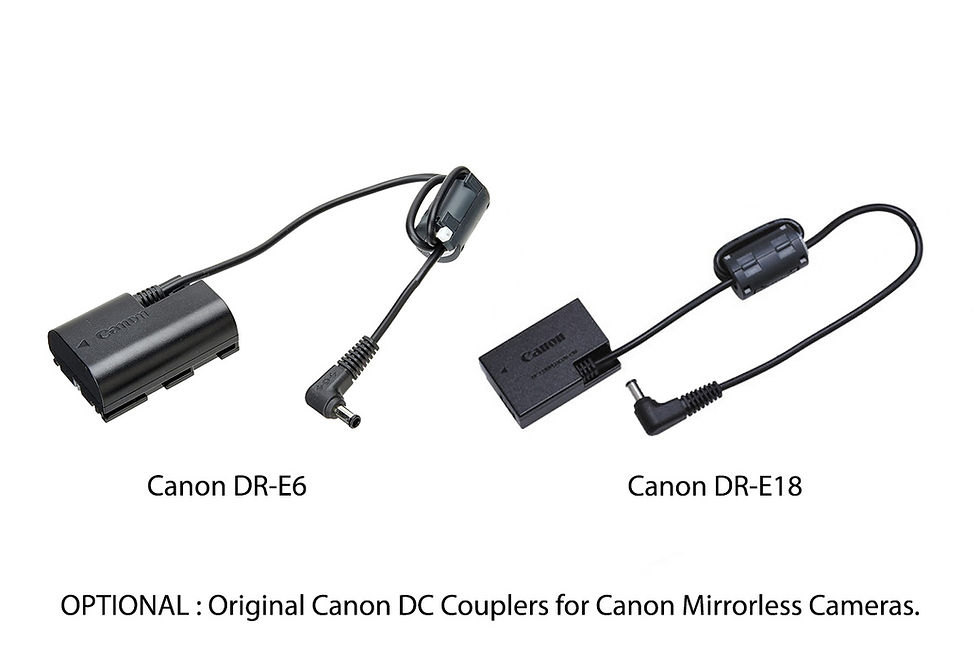

PLEASE NOTE ** Original Canon DC Couplers are need for Canon Mirrorless Cameras.
Canon DR-E6 for EOS R, R5, R6, R7, 5D Mark III

Canon DR-E18 for EOS R10, R50


Compact, Powerful, Secure

The new TITAN X is a result of deploying over 200 Tbox time-lapse cameras over the last 10 years. Feedback and improvements were made by our time-lapse specialist and community to create the best time-lapse camera system.


Instant Access to Images

The TITAN X captures high-res photos in regular shooting intervals, simultaneously uploading the images to our Tbox server via 4G cellular data or WiFi. Our web-based Tbox viewer is accessible to you and your clients to view and download your time-lapse photos from a desktop or mobile phone anytime, anywhere.


Efficient & Robust Minicomputer

Titan X minicomputer is the brain that transforms the Canon camera into a time-lapse camera system. The Titan X software has been completely re-coded so it is smarter, more stable, and more power efficient.

The integrated heat sink design keeps the processor cool even at temperatures up to 50 °C.


Fault Alert System

The Titan X server will automatically send an alert message to your phone via Whatsapp, if no image is received from your time-lapse camera. Thus, you can rest assured that your camera functions as it should.


Easy Setup with Tbox App

The Titan X brain is pre-programmed to connect to our server, so you don't have to do the dirty work. Use the Tbox App to set the camera interval recording, test shot, and sync to the server.


Secured Storage in Our Server & Cloud

With most long-term time-lapses lasting several years, protecting your precious images is paramount. The images from Titan X are sent via 4G cellular data to our secured server. The server sends copies of the original photos to a Data Cloud like Google Cloud for your access. The low-res photos are available for your viewing and download via


TBOX Server & Cloud Storage

Our robust cloud ecosystem helps you manage your shooting, monthly reporting, and post-production. The server sends automated fault alert messages to our team if any time-lapse systems are down. The server also down-res the images for our Photo Viewer and uploads the original high-res photos to your Google Drive.


TITAN X Camera Fit

TITAN X fits Canon cameras and lenses within the internal box dimension of 200(L) x 170(W) x 110(H)mm. The maximum lens diameter is 87mm.


Universal Mounting System

TITAN X uses a uniform mounting bracket for the time-lapse camera & solar battery unit. The bracket is adaptable for column, pole, and wall mounts. So you spend less time worrying about installation and more time making great time-lapse

Titan X Case Specifications
Exterior Dimensions  -  460 x 200 x 174mm (L x W x H)
Box Material  -  Electroplated AL6063
IP Rating  -  IP 66
Front Lens Material  -  5mm Clear Glass
Net Weight  -  2.7kg
Camera Lens  -  Max. Diameter 87mm

Operating Power  -  DC 12V / 4 to 15A

Titan X Mini-Computer Specifications
Working Temperature  -  0 to 60 °Celcius
Memory  -  1GB RAM

I/O  -  4 x USB 2 ports, MicroSD card

Supply Input  -  12V
Operating Power  -  5V/2.5A DC

Mobile WiFi  -  TP-Link M7200

SIM Card Compatibility

Supported Region: America, Australia, Europe, Middle East, Asia, Africa, Southeast Asia
4G LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66/B38/B40/B41

3G WCDMA: B1/B2/B4/B5/B8

4G LTE CAT4 150Mbps


Titan X Timelapse Camera System

  • Ex Works. DHL Shipping. A typical transit time is 5 to 14 days. Our shipping does not cover customs, duties, or taxes in the receiving country.

    Titan X Box
    57(L) x 30(W) x 22(H) cm.
    Weight = 5 kg
